Protocols

SCEP challenges and secrets

One-time challenges, shared secrets, and pinning a single enrollment.

Every SCEP device presents a challenge password. Multiple authentication methods can be enabled on an endpoint.

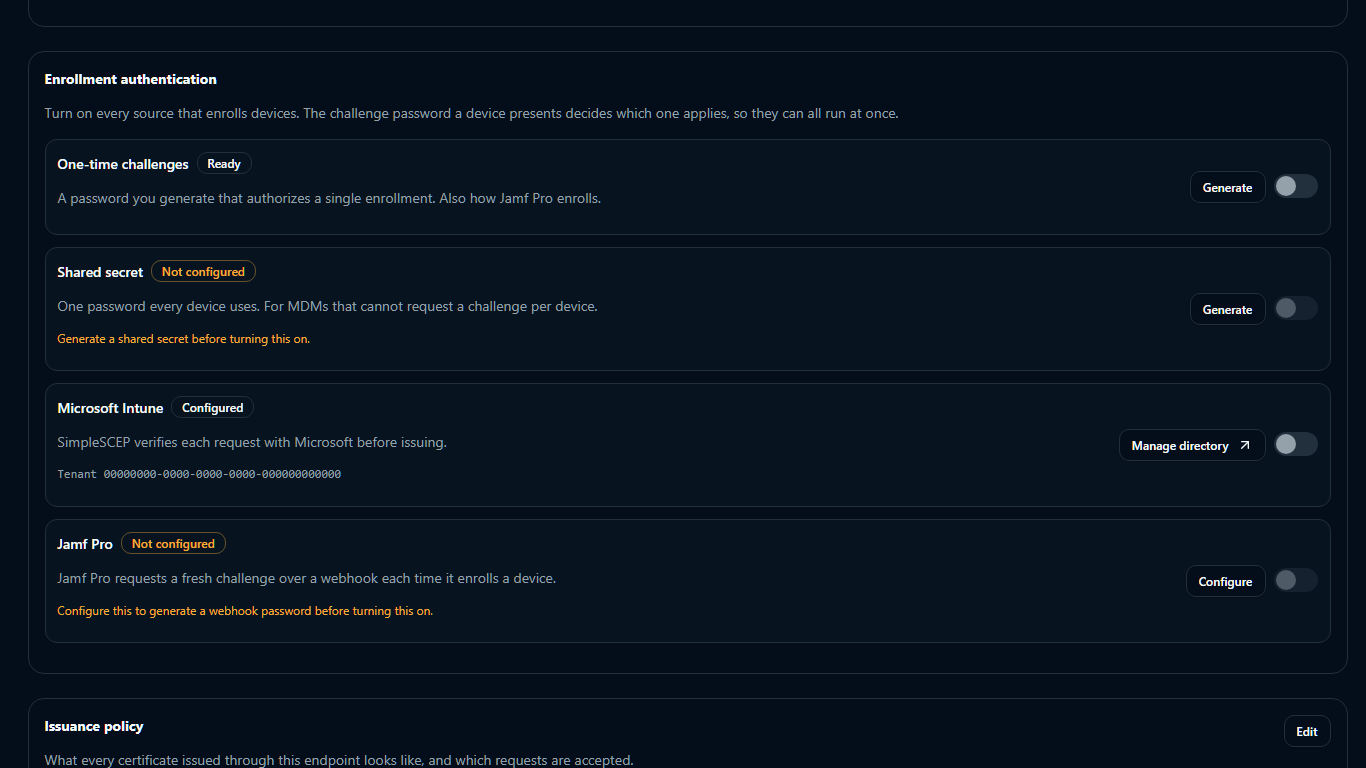

A SCEP endpoint's Enrollment authentication card, one switch per method

Configure and enable methods under Enrollment authentication. Configuration does not enable a method automatically.

Method Button How a device gets its password
One-time challenge Generate An administrator generates one in the console, or automation posts for one
Shared secret Generate, then Rotate One password every device uses
Microsoft Intune Connect directory Intune issues it and Microsoft validates it
Jamf Pro Configure, then Update Jamf fetches a fresh challenge per device over a webhook

The Intune directory connection is shared across the organization and configured on the protocols page.

One-time challenges

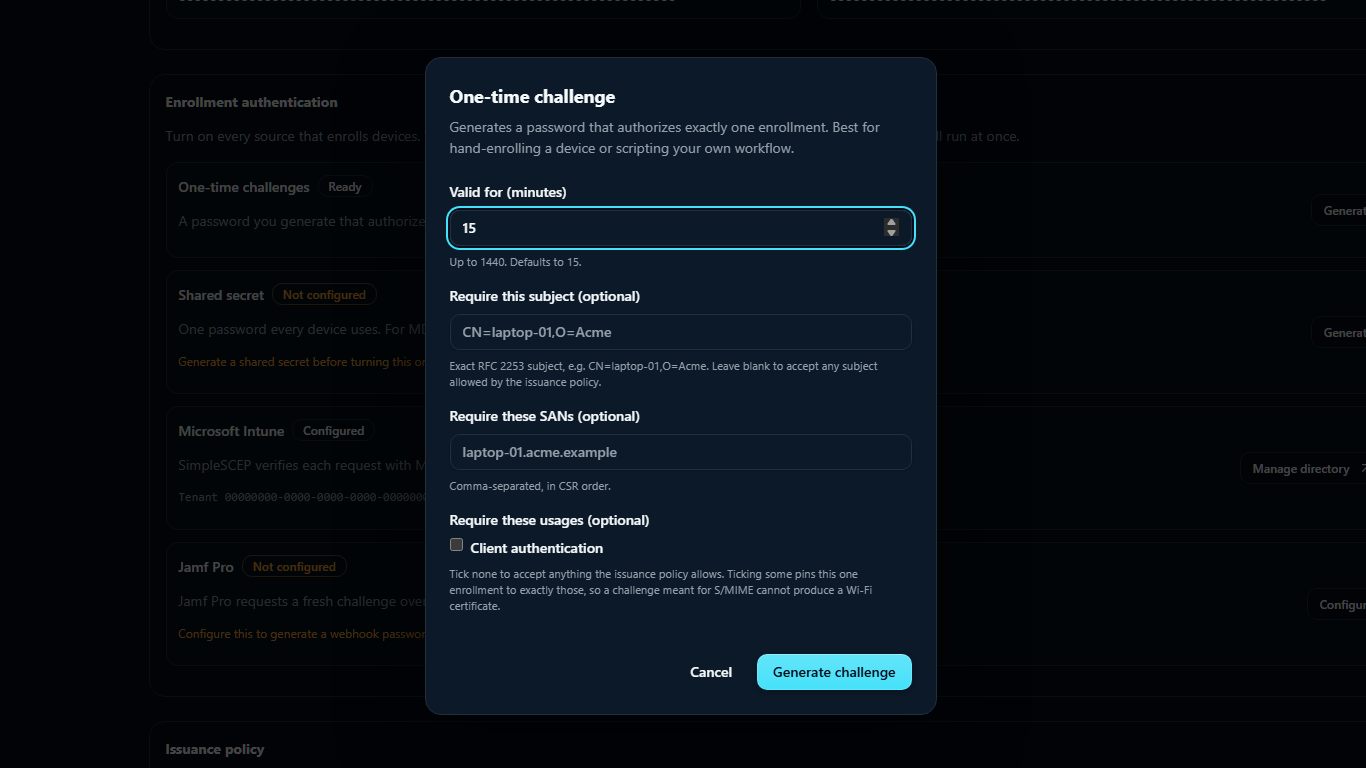

The One-time challenge dialog, with its optional pinning fields

A one-time challenge can be used once. Select Generate, set its lifetime and optional subject, SAN, or usage restrictions, then select Generate challenge. The password is shown once.

The same thing from automation:

curl -sS -X POST \
  https://pki.example.com/api/scep/endpoints/<endpoint-id>/challenges \
  -H 'Content-Type: application/json' \
  -d '{
        "expectedSubject": "CN=laptop-4193.corp.example.com",
        "expectedSANs": "laptop-4193.corp.example.com",
        "expectedEKUs": ["client_auth"],
        "externalId": "asset-4193",
        "ttlSeconds": 900
      }'

# → {"challenge":"…","expiresIn":"15m0s"}

All fields are optional. The default lifetime is 15 minutes.

Field Effect
expectedSubject The enrollment must present exactly this subject
expectedSANs The enrollment must present exactly these names, in this order
expectedEKUs The usages this one enrollment may ask for. May only narrow what the endpoint permits, and is compared as a set — order does not matter
externalId Your own reference, carried through to the enrollment record
ttlSeconds Lifetime. Defaults to 900, capped at 24 hours. A value over 24 hours or below zero falls back to 900

Pins restrict a challenge to one expected enrollment.

Challenge passwords are shown once and cannot be listed later. Used challenges appear under Recent enrollments. Deleting the endpoint deletes unused challenges.

Shared secret

One shared secret can authenticate multiple devices. Select Generate or Rotate, or use the API:

curl -sS -X POST \
  https://pki.example.com/api/scep/endpoints/<endpoint-id>/auth/static

The secret is shown once. Rotate it if lost. Rotation immediately invalidates the previous secret.

Anyone with the shared secret can enroll within the endpoint's policy. Use a restrictive policy and short validity period.

Using the API

Both routes accept form data or application/json; JSON requests receive JSON responses.

Administration requires an administrator session. There is no service-account or API-key authentication yet — use a dedicated administrator session for automation until there is.
